Description:

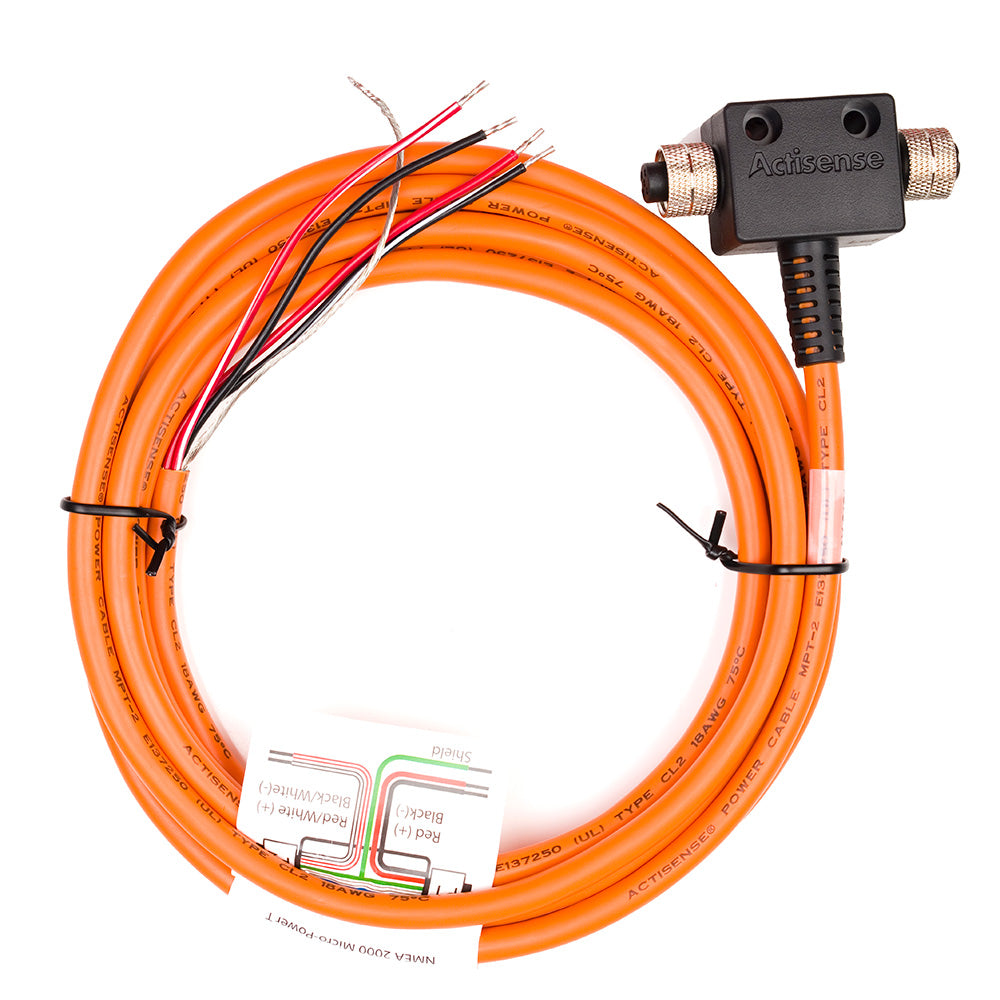

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

• Rated Current - 4A (each feed)
• Rated Voltage - 60VDC

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass Filled), Black
• Contact Polarization - Standard M12 -“A”- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - PVC, black
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.7mm ±0.254mm
• Cable Length - 3M
• Wire Length - 100mm (7mm stripped)
• Wire Jacket - PVC
• Wires - 18 AWG (stripped and tinned)
• Drain - 18 AWG (34-strand tinned copper)
• Shield - Al-mylar
• Weight - 290g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -20°C to +70°C
• Storage Temperature - -40°C to +85°C

Specifications:

• Cable Length (Feet): 9.8
• Connection Gender: Female-Female
• Data Interface: NMEA 2000
• Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs
• UPC: 5060998710140
