Description:

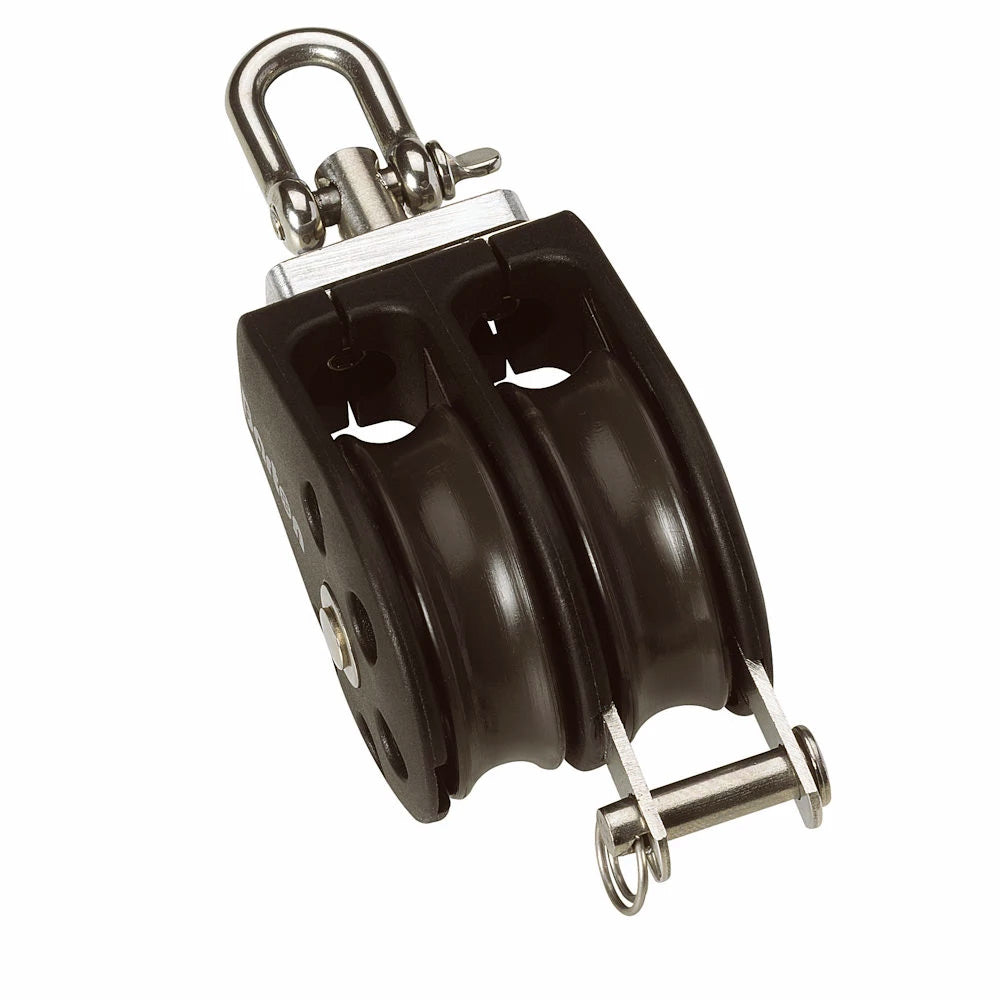

Size 2 35mm Plain Bearing Pulley Block Double Swivel & Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

• Weight: 99g
• Dimensions: 100 × 39 × 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye + Becket
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)
