Description:

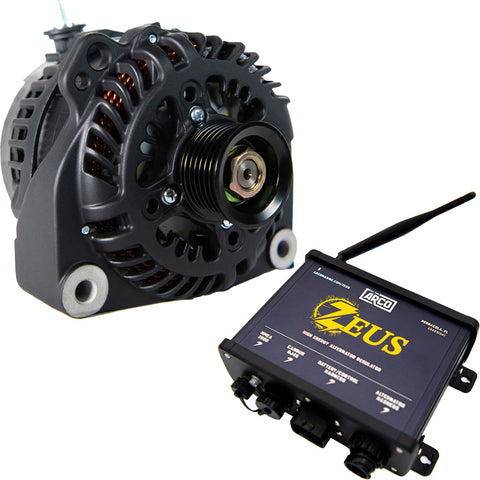

Zeus A225S Vortec Alternator with Regulator & Zeus High-Energy Alternator Regulator

Zeus A225S Vortec Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:
• Heat-shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM Components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.
• For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12V
• Field Type - P
• Rotor Poles - 16
• Stator Size - 130mm
• Frame Size - Small
• Weight - 12lbs/6.7kg
• Regulation - Internal/External
• Output Voltage - 14.1V (default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 254 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps

Mounting Application:

• Replaces Mando type alternators using Vortec/ GM pad mounting feet (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines.) (GM Blocks)

Zeus High-Energy Alternator Regulator

ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection
• Harnesses, Thermistors, and NMEA 2000 kit included
• Monitors the state of charge
• Can turn your engine into a dedicated generator with generator mode
• Pre-set battery libraries
• Data logging and sharing
• CAN bus and NMEA 2000-integrated networks
• Compatible with all voltage systems (12- 48V)
• IP66 & IP67 rated
• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"
• Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4"
• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator
• Battery wiring harness
• Alternator wiring harness
• 2 thermistors
