Description:

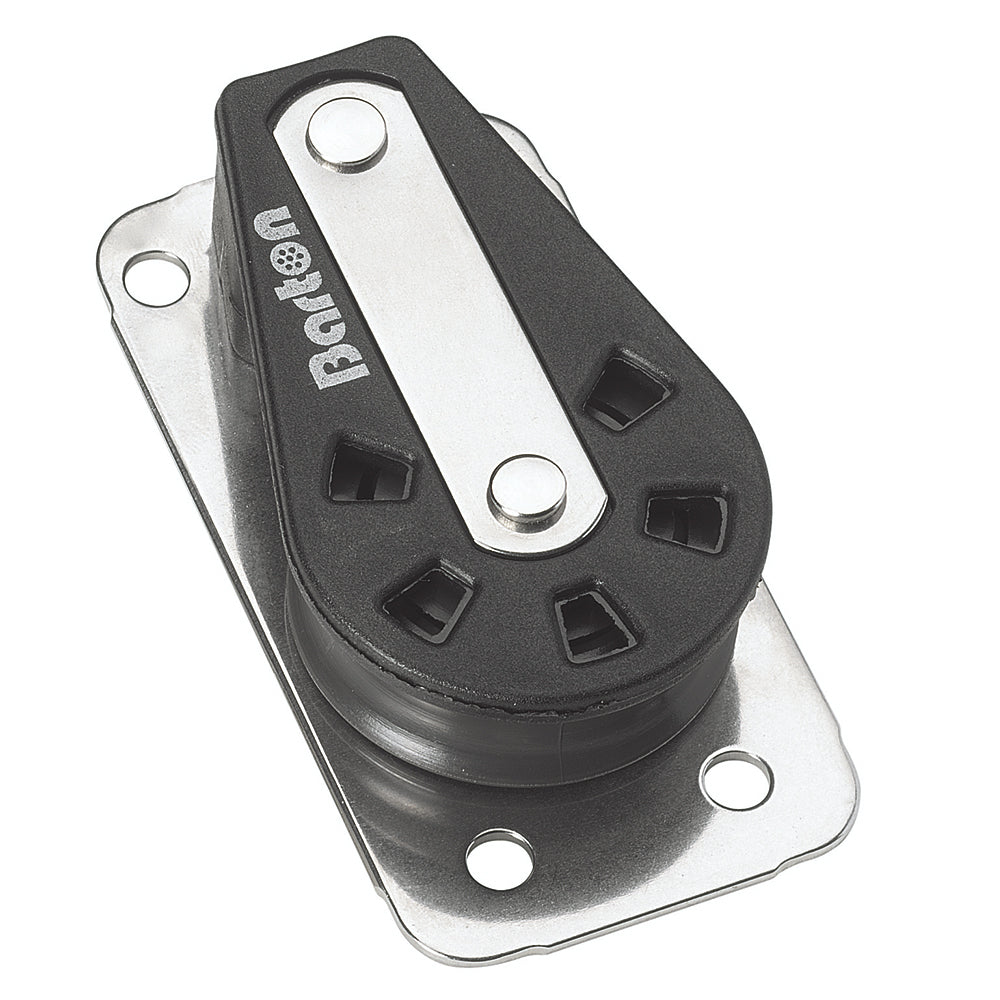

Size 2 Single Cheek Block

Plain Bearing Blocks

Barton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Specifications

• Sheave size: 35mm x 12mm
• Max rope diameter: 8mm
• Safe working load: 370kg / 815lbs
• Breaking load: 740kg / 1630lbs
• Length: 80mm
• Weight: 73g
