Description:

1 Bank On-Board Battery Charger - 12V/16V - 10-Amp

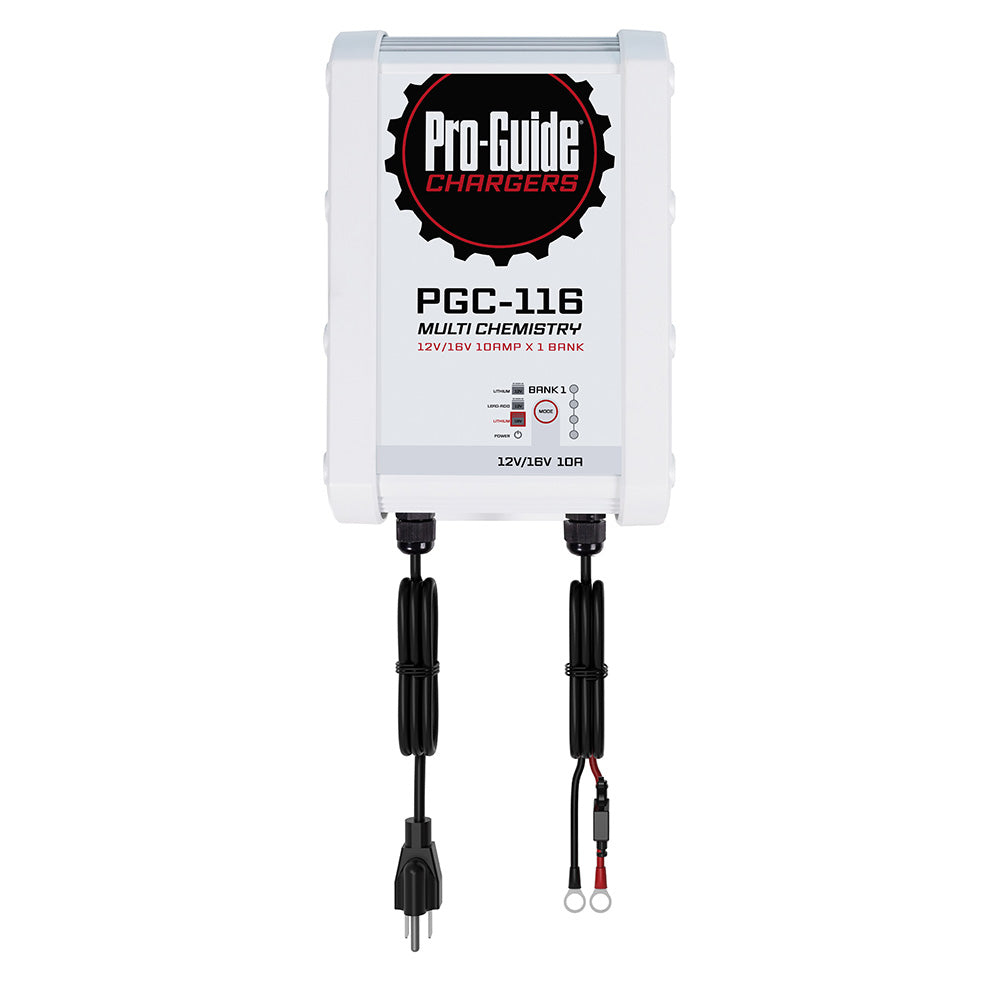

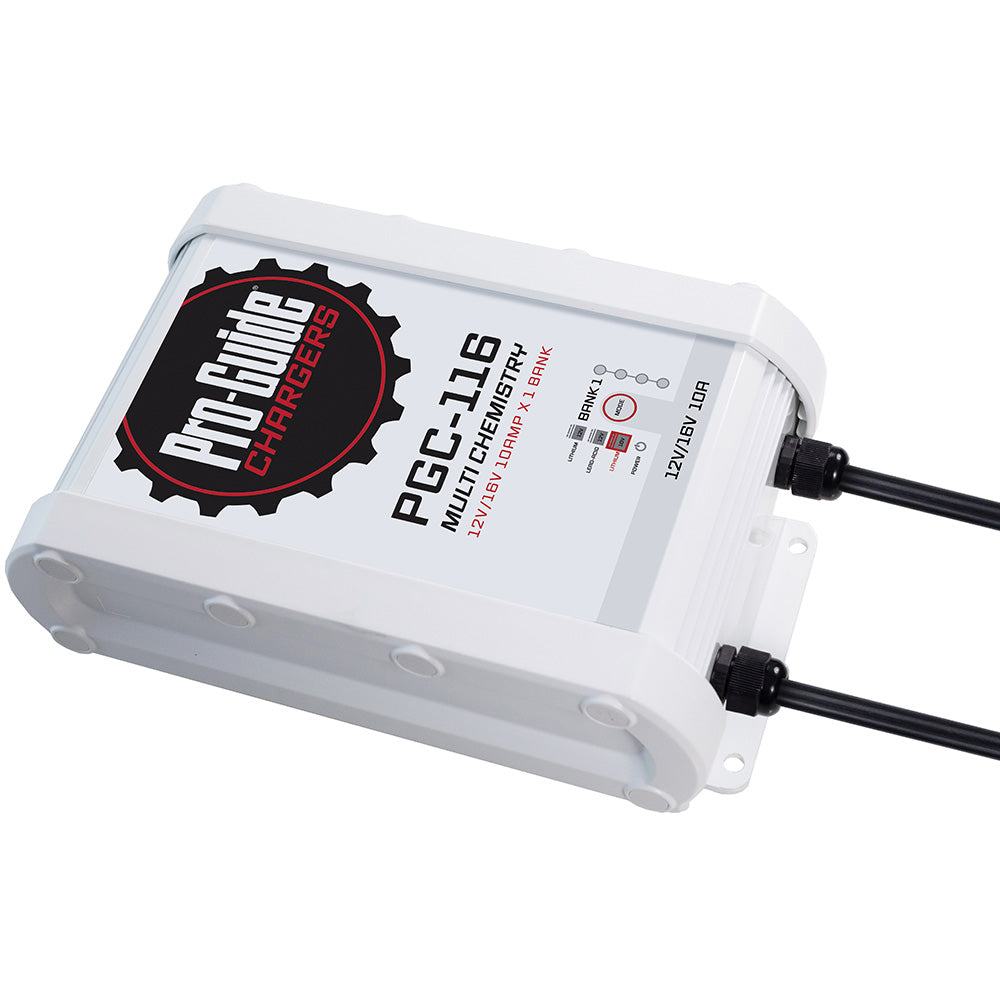

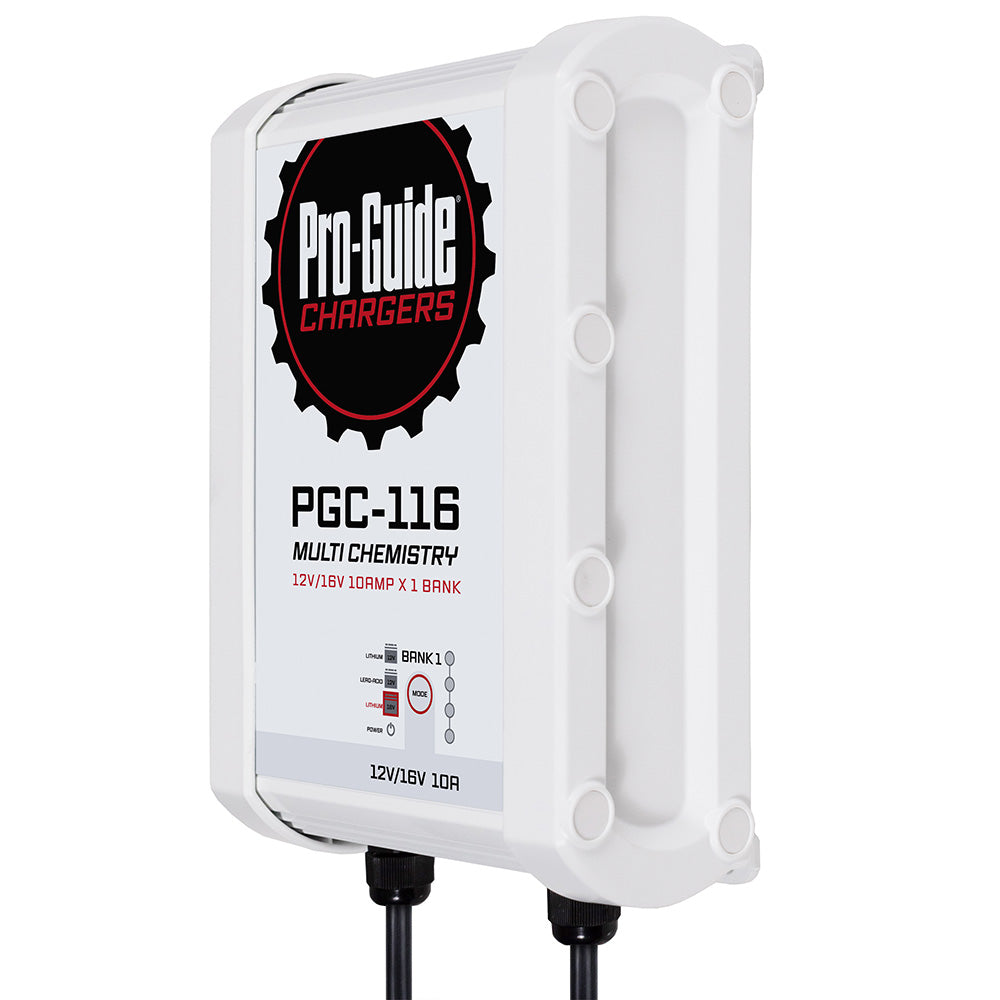

The Pro-Guide PGC-116 is a 12V AGM / Lithium or 16V Lithium on-board battery charger.

Select one of two charge profiles

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V AGM / Lithium & 16V Lithium
• Output Voltage: DC 12V/16V x 1
• Max Output Voltage: 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, & 18-18.3 for 16V Lithium Battery
• Output Current: 10A  for 12/16V Bank
• Length: 6.02"
• Width: 9.96"
• Height: 3.86"
• Weight: 9.9 lbs
• IP Rating: 68
