Description:

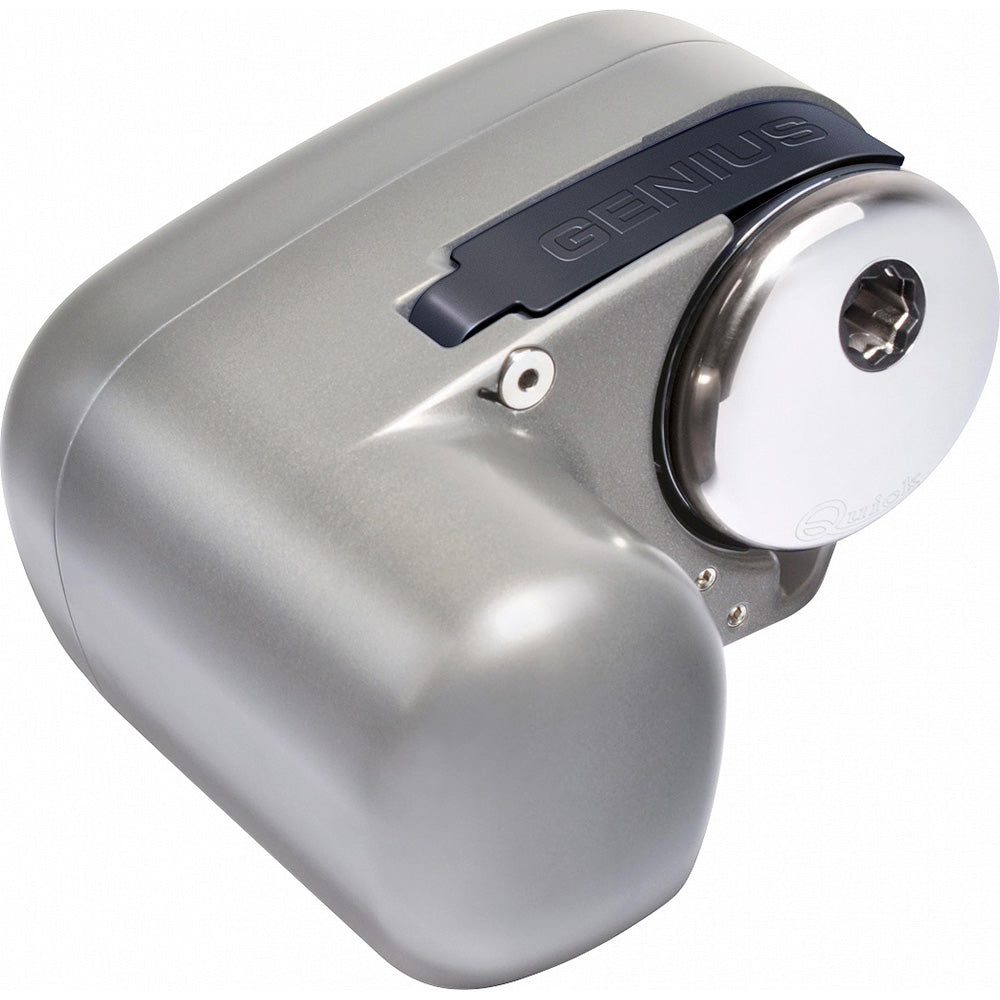

Genius GP2 2000FF Windlass - Automatic Free-Fall System - 800W, 12V, 8MM or 5/16" Gypsy

The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button, the windlass will release its clutch and the gypsy will freewheel. To stop the free-fall, depress the up control button on the windlass; the clutch will engage, stopping the gypsy and allowing retrieval of the chain.

The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

• Horizontal on-deck windlasses
• Includes T6415-12 Solenoid
• For boats 26-43FT
• 8MM or 5/16" Gypsy
• Requires 5/8" three-stranded polyester rope
• Anodized aluminium in hard oxide base
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• IP66 watertight motor
• Epicyclic gearbox (GP2 1500-2000)

Specifications:

• Motor power - 800 W
• Motor supply voltage - 12 V
• Maximum pull - 900 Kg / 1984 lb
• Maximum working load - 350 Kg / 772 lb
• Working load - 120 kg/265 lb
• Current absorption @ working load - 96 A
• Maximum chain speed - 29,6 m/min / 97.1 ft/min
• Maximum chain speed @ working load - 20 m/min 65.6 ft/min
• Weight - 10,9 Kg / 24 lb
