Description:

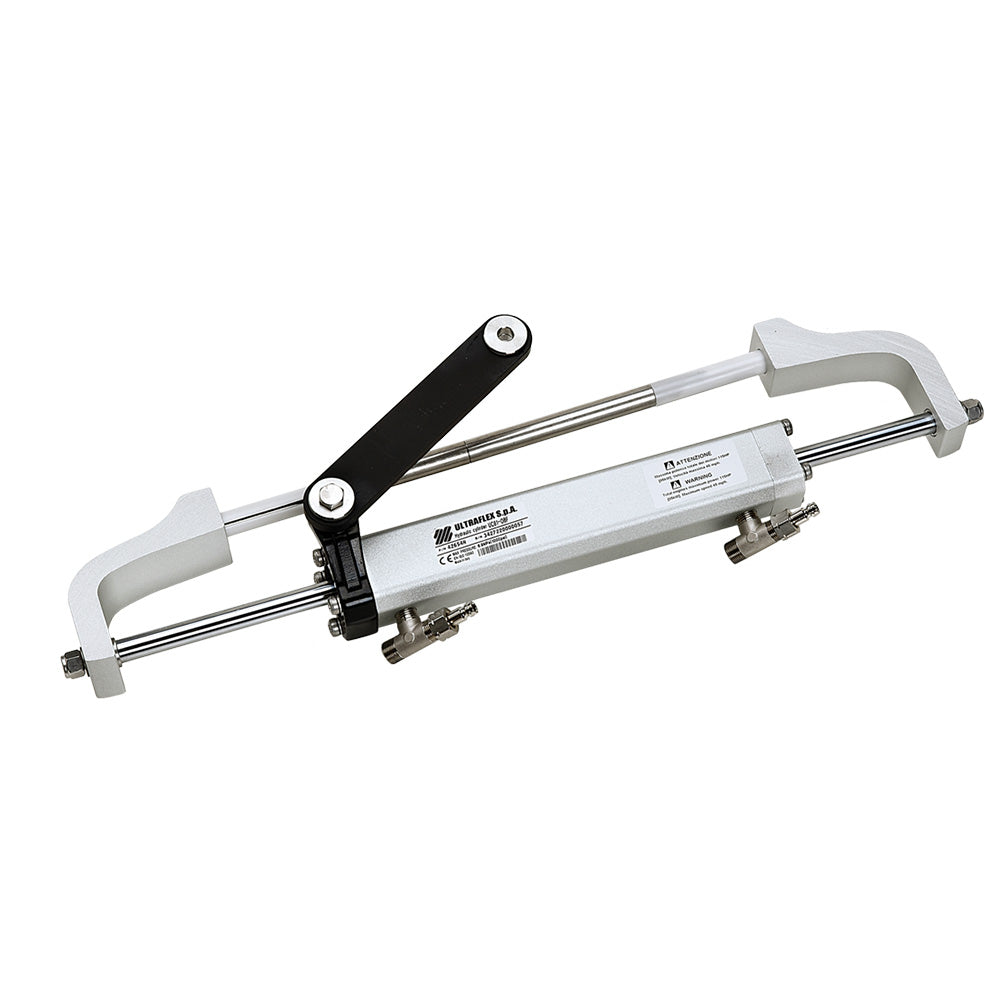

UC81-OBF Front Mount Outboard Cylinder

UC81 OBF – Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa. Front-mount cylinder for outboard engines up to 115 hp. Replaceable end caps.

Specifications:

• Volume: 81 cc - 4.9 cu. in
• Output force: 222 kg (489 lbs)
• Inside diameter: 27,4 mm (1.08")
• Stroke: 186 mm (7.3")
• Fittings for high-pressure flex hose: 3/8"
• Bleed fittings: DN5 quick connect
